Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
Material: | Stainless Steel | size: | M6-M130 |
---|---|---|---|
Class/Grade: | 304/316 | International Standard: | NON- STANDARD |
Certificate: | ISO9001 | Connection: | Contacting |
Type: | plain washer | Used: | Machinery, Chemical Industry |
Cahaya Tinggi: | Rubber Flat Washer,Galvanized Flat Washers |
Non-standard Stainless Steel M 2- M130 SS 304 ,SS 316 Flat Washer
1.Product Description
There are severl kinds of washers,and different type has different use.High-strength steel washers, spherical washers, conical washers, Square taper washers for I-beam, channel steel square taper washers, standard spring washers, spring washer light, heavy spring washer, internal tooth lock washers, Serrated lock washers, lock washers external teeth, serrated lock washers, lock washers monaural, binaural washers, external tab washers, round nut washers. Flat washers generally used in the connecting member is a soft texture, a hard brittle texture, and its main role is to increase the contact area, spread the pressure, prevent the soft texture of crushed. The basic action of the spring washer spring, then tighten the nut after nut a force, increasing the friction between the nut and bolt! Material 65Mn (spring steel), heat treatment, hardness HRC44 ~ 51HRC, by surface oxidation. Washer (spring) washers, retainer is resilient pad or card
In short, bolts, washers, although very small, inconspicuous basic mechanical parts, in fact, inside the mechanical problems, material problems, and even a lot of mechanical principle problem at all, critical time can not be a little sloppy.
Such fastening member such as a bridge to see the site, designed to tighten these places a number of factors in addition to the above, there is more attention, including the installation of fastening installation technology, maintenance, preservation, and other aspects to consider replacing damaged.
2.Specification
Item | plain washers | ||||||
Standard: | Non- standard | ||||||
Material | Stainless Steel: SS201 SS304/SS304L SS316/SS316L SS904 |
||||||
Production Process |
M2-M130 | ||||||
Stock Products | Stainless steel: All DIN Standard stainless steel products |
d |
n | h | H |
---|---|---|---|
2 (2.1-2.4) |
0.9±0.1 |
0.5±0.1 | 1.0-1.2 |
2.2 (2.3-2.6) | 1±0.1 | 0.6±0.1 | 1.2-1.4 |
2.5 (2.6-2.9) | 1±0.1 | 0.6±0.1 | 1.2-1.4 |
3 (3.1-3.4) | 1.3±0.1 | 0.8±0.1 | 1.6-1.9 |
3.5 (3.6-3.9) | 1.3±0.1 | 0.8±0.1 | 1.6-1.9 |
4 (4.1-4.4) | 1.5±0.1 |
0.9±0.1 |
1.8-2.1 |
5 (5.1-5.4) | 1.8±0.1 | 1.2±0.1 | 2.4-2.8 |
6 (6.1-6.5) | 2.5±0.1 | 1.6±0.1 | 3.2-3.8 |
7 (7.1-7.5) | 2.5±0.1 | 1.6±0.1 | 3.2-3.8 |
3.Application
Flat pad acts 2: one is the screw is too long: There is a screw or deduction is half plus flat pad cap on it with full, the screw the other is where the hole is too big plus flat pad will not take down the drain
4.Advantage
1. Under Under normal circumstances, the load is relatively small, and not subjected to vibration load situation can only pad.
2. Under the load is relatively large, and withstand vibration load case, you must use flat washers, spring washers combinations.
3. The spring washer is not substantially alone, they are used in combination.

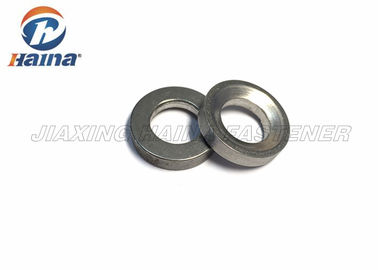

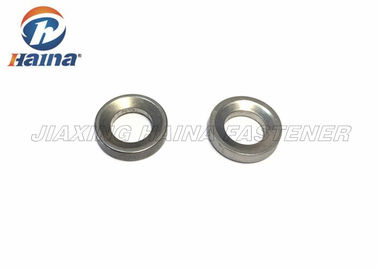

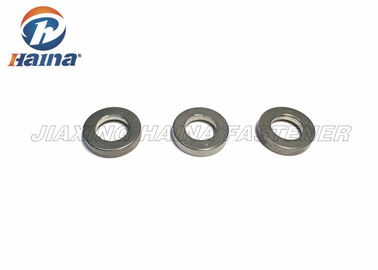

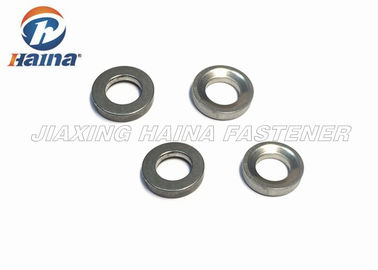

5.more pictures
