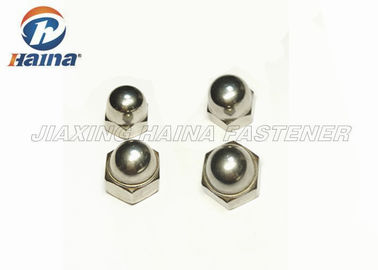

Plain Color Passivation Stainless Steel Gr 316 M6 - 1 Pitch Hexagon Cap Head Nuts for Building

Plain Color Passivation Stainless Steel Gr 316  M6 - 1 Pitch  Hexagon Cap Head Nuts for Building
Plain Color Passivation Stainless Steel Gr 316  M6 - 1 Pitch  Hexagon Cap Head Nuts for Building Plain Color Passivation Stainless Steel Gr 316  M6 - 1 Pitch  Hexagon Cap Head Nuts for Building Plain Color Passivation Stainless Steel Gr 316  M6 - 1 Pitch  Hexagon Cap Head Nuts for Building Plain Color Passivation Stainless Steel Gr 316  M6 - 1 Pitch  Hexagon Cap Head Nuts for Building

Gambar besar :  Plain Color Passivation Stainless Steel Gr 316 M6 - 1 Pitch Hexagon Cap Head Nuts for Building

Detail produk:

Tempat asal: China
Nama merek: HNF
Sertifikasi: ISO9001
Nomor model: M10

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order: 100000PCS
Harga: Negotiation
Kemasan rincian: CARTONS +PALLETS
Waktu pengiriman: 5-15 DAYS
Syarat-syarat pembayaran: L/C, T/T, Western Union
Menyediakan kemampuan: 500TONS PER MONTH
Detil Deskripsi produk
Diameter: 1/4-20 Material: ss316
Finish: plain Package Quantity: 100
Usage: constructing,building,industry Sample: free
grade: SS304,SS316 Standard: DIN
Origin: China Thread: UNC,UNF
Cahaya Tinggi:

Heavy Hex Nut

,

Carbon Steel Nuts

Stainless Steel 304 Plain Color Surface Passivation M5 - M10 Hexagon head Long Nuts





1. Product Description



Acorn nut is its common name and it is also called a crown hex nut, blind nut, cap nut or domed cap nut. It is a nut that has a domed top to cover the threads. This is to prevent contact with the external thread to protect the threads or protect other things the threads would rub against.

Acorn nut is its common name and it is also called a crown hex nut, blind nut, cap nut or domed cap nut. It is a nut that has a domed top to cover the threads. This is to prevent contact with the external thread to protect the threads or protect other things the threads would rub against. In addition the dome gives a more finished appearance. It is usually made of brass, steel, stainless steel (low carbon content) or nylon. It can also be chrome plated and given a mirror finish.A nut with a finished top that covers the end of the bolt. Bolts must be in the proper length.



Packaging Details: Bulk packing : in 25 kgs /per carton , then with pallet.
Delivery Detail: 15-25days (according the actual order )

Name:hex cap nut
Raw Material:stainless steel 316
Quality:High Quality
Specifications:Various shape size according to client's requirement
Professional:We are specialized in fastener products more than 10 years
Service:All the services/High quality service
Packing:IN BULK :canton/pallet, Small Boxs/carton/ pallet, or customer request
Payment terms:T/T,L/C,,WESTERN UNION ,ETC...
Delivery time:In 30~45 Days after order confirmed regarding to quantity





2. Specification



Plain Color Passivation Stainless Steel Gr 316  M6 - 1 Pitch  Hexagon Cap Head Nuts for Building 0

diameter pitch h m s
D P
        max min
M3 0.5 2.5 6 5.5 5.32
M4 0.7 3 7 7 6.78
M5 0.8 4 9 8 7.78
M6 1 5 11 10 9.78
M8 1/1.25 6 15 13 12.73
M10 1/1.25/1.5 8 18 16 15.73
M12 1.25/1.5/1.75 10 22 18 17.73
M16 1.5/2 13 26 24 23.67
M18 1.5/2/2.5 14 29 27 26.16
M20 1.5/2/2.5 16 32 30 29.16
M22 1.5/2/2.5 18 35 34 33





3. Application



Typically manufactured from either low carbon steel or stainless steel,cap nuts, also referred to as acorn nuts are used to cover exposed bolt ends and add a finished appearance. ;These stainless steel cap nutsare composed of a hex nut and top cap consisting of 18% chromium and 8% nickel for corrosion resistance.



4. Advantages



RICH EXPERIENCE:

We have been engaged in the fasteners for 15 years. Our company had good reputation with customers from American, Europe and Austrialia etc. We also have a good team for sale and quality control.

GOOD SERVICE:

We will respond to you within 24 hours. We can manufacture nonstandard parts according to your drawings. And we will continue to serve you after sales and will be responsable for the mistakes from us.

LOW PRICE:

The prices of our production are reasonable! The prices will be much better if your quantity is good.

PERFECT QUALITY:

We have strict quality control from producing to delivery.Our company had strong technology support, 80% of our colleagues are master or bachelor's degree. We have cultivated a group of managers who are familiar with product quality , good at modern concept of management .

We are OEM manufacturer located in ShenZhen,GuangDong,China.
We make the most professional fasteners with over 15years experience.
We think the best quality would be the main point in the whole world.
We took our mind to make the products into perfect way.
We can see,so we can do!!!

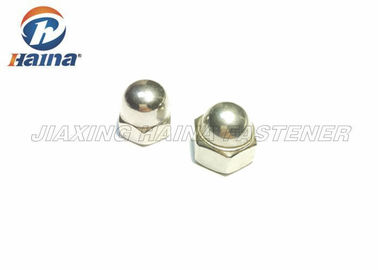

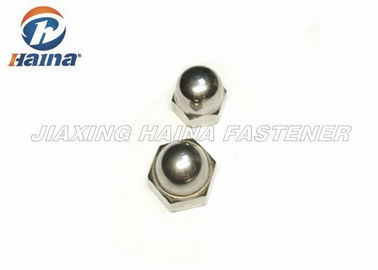

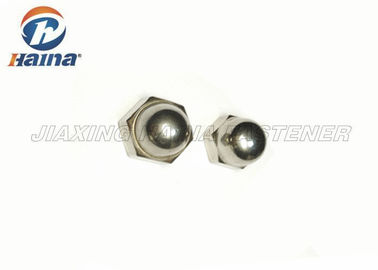

5. More pictures





Plain Color Passivation Stainless Steel Gr 316  M6 - 1 Pitch  Hexagon Cap Head Nuts for Building 1
