Rumah ProdukHex Head Nuts

Plain Finish Hex Head Nuts Anti Corrosion ASTM A194 M6 - M48 3/16" - 3 1/2"

Cina Jiaxing Haina Fastener Co.,Limited Sertifikasi
Cina Jiaxing Haina Fastener Co.,Limited Sertifikasi
Thanks for Jiaxing Haina Fastener.Thank for Tony, Help me finish every order.We are very satisfy with each goods.

—— Steve From United States

Haina Provide me good products every time.Reasonable price and Fast delivery time.Every time I am very happy when i get goods.Thanks for them

—— Ali

Kualitas dan Layanan yang baik, Terima kasih banyak!

—— Jim

I 'm Online Chat Now

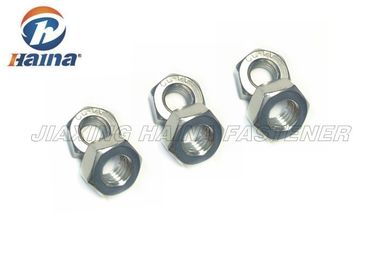

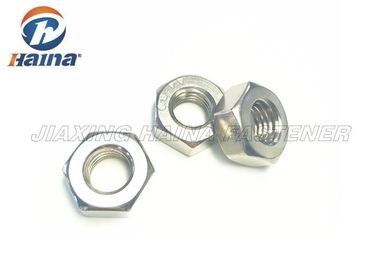

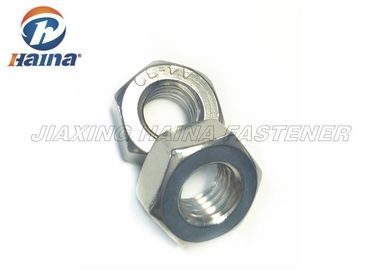

Plain Finish Hex Head Nuts Anti Corrosion ASTM A194 M6 - M48 3/16" - 3 1/2"

Plain Finish Hex Head Nuts Anti Corrosion ASTM A194 M6 - M48 3/16" - 3 1/2"
Plain Finish Hex Head Nuts Anti Corrosion ASTM A194 M6 - M48 3/16" - 3 1/2" Plain Finish Hex Head Nuts Anti Corrosion ASTM A194 M6 - M48 3/16" - 3 1/2" Plain Finish Hex Head Nuts Anti Corrosion ASTM A194 M6 - M48 3/16" - 3 1/2" Plain Finish Hex Head Nuts Anti Corrosion ASTM A194 M6 - M48 3/16" - 3 1/2"

Gambar besar :  Plain Finish Hex Head Nuts Anti Corrosion ASTM A194 M6 - M48 3/16" - 3 1/2"

Detail produk:

Tempat asal: CN
Nama merek: HNF
Sertifikasi: ISO9001
Nomor model: M6-M48 3/16"-3 1/2"

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order: 1000 piece
Harga: Negotiation
Kemasan rincian: Common export packing. Cartons+Pallets, or customized packing. Bag Packing
Waktu pengiriman: 10-20 days
Syarat-syarat pembayaran: L/C, T/T, Western Union, Paypal
Menyediakan kemampuan: 500 tons per month
Detil Deskripsi produk
Product: Hex Head Nut Head Drive: Hexagonal
Standard: DIN ANSI JIS Bsw Surface: Plain Finish
Material: Stainless steel Head: Hex Head
HS Code: 731816 Inspection: 100%QC Steps Inspect Before Shipment
Connection: Common nut
Cahaya Tinggi:

Heavy Hex Nut

,

Carbon Steel Nuts



Stainless Steel A2-70 A4-80 DIN934 ISO4032 ASTM A194 M6-M48 3/16"-3 1/2" Hex Head Nut

Description:


Hex Head Nut play the role of a component of all manufacturing machinery. It fastener other components. There are kinds of nut. We have common national standard, German standard, the British standard, American Standard, the subject of the nut. There are many kinds of lock nut. Hex Head Nut is very common.

Hex nut, according to the nominal thickness, is divided into type I, type II and thin nut. Hex Jam Nut. Above Grade 8 nuts , which is divided into Type 1 and Type II two types.

I type hexagon nuts widest application, a nut is divided into A, B, C three, where A and B grade nuts applied to the surface roughness is small, the high requirements for precision machinery, equipment and structures, and C grade nuts are used for relatively rough surface of the machinery, equipment or structures less precision; type 2 hex nut relatively thick, more often need to be used in assembly and disassembly of the occasion.

Type 1 nut refers nominal nut height m≥0.8D ordinary hex nut, of the type size should be consistent with the provisions of GB / T6170's;

The height of type 2 than type 1 nut to nut, of the type size should be consistent with GB / T6175. Increase in type 2 nuts two purposes: First, to obtain a nut without heat treatment by increasing the height, relatively low nut.





Specification:



Item Stainless Steel A2-70 A4-80 DIN934 ISO4032 ASTM A194 M6-M48 3/16"-3 1/2" Hex Head Nut
size M6-M48 3/16"-3 1/2"
Material Available Stainless Steel: SUS304, SUS316
Surface treatment Passivate, Chrome plated, Electro plating, Black, Plain
Heat treatment Tempering, Hardening, Spheroidizing
Tolerance 6g
Packing Plastic bags + carton box + pallet
Lead time About 15-25 days. Reality time is according to customer's requirement
Address Jiaxing, China



SAE Hex Nut Data:

UTS Nominal hole Across flats, Across corners, Height, H
size diameter, D A/F A/C Hex nut
  (in) (mm) (in) (mm) (in) (mm) (in) (mm)
#0       532 0.1563 3.969
#1       532 0.1563 3.969
#2   0.086 2.1844 316 0.1875 4.763     5.18   1.65
#3       316 0.1875 4.763     5.1   1.85
#4   0.112 2.8448 14 0.25 6.35     7.05   2.25
#6   0.138 3.5052 516 0.3125 7.938     8.95   2.85
#8   0.164 4.1656 1132 0.344 8.731   0.386 9.8   3.05
#10   0.19 4.826 38 0.375 9.525   0.461 11.7   3.1
#12   0.216 5.4864 716 0.4375 11.113
14 14 0.25 6.35 716 0.4375 11.113
516 516 0.3125 7.9375 12 0.5 12.7   0.577
38 38 0.375 9.525 916 0.562 14.288   0.65
716 716     1116 0.675 17.463
12 12 0.5 12.7 34 0.75 19.05   0.866
916 916     78 0.875 22.225
58 58     1516 0.9375 23.813   1.083
34 34 0.75   1 18 1.125 28.575   1.299
78 78     1 516 1.3125 33.338
1 1 1 25.4 1 12 1.5 38.1   1.653



Application:

Stainless Steel Hex Head Nut is most common in usage, which is mainly used for fastener one thing by the nuts. And it has requirement of the torque, and we will control the torque for customers. It is in great anti-corrosion, so it is usually used outdoor or  environment.



Advantages:


1. Over 6 years of manufactiring experience
2. Many kinds of stock
3. Competitive price
4. Quality control system

5. Sample available

6. Professional Workers
7. OEM workable
