Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
Item Name: | Black HEAVY HEX NUT | Diameter: | M5-M100 |
---|---|---|---|
Material: | 45# | Finish: | Black |
Package Quantity: | 20-25KG | Pitch: | Fine |
Sample: | In-stock Alternative Products | grade: | 10.9 grade |
Standard: | DIN 555 | Origin: | China |
Cahaya Tinggi: | Heavy Hex Nut,Carbon Steel Nuts |

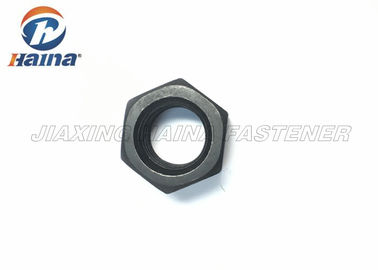

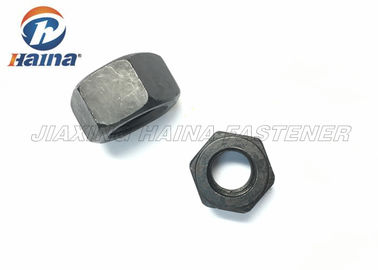

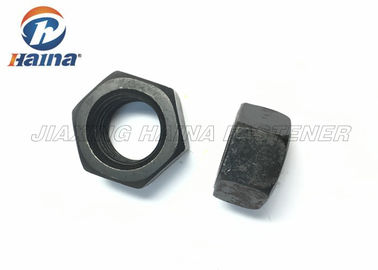

DIN 555 Black Oxide Finished Heavy Hex Head Nuts Grade 8.8 Grade 12.8
1.Product Description
Hex nuts and bolts, screws with the use of the connecting mechanical fastening effect. 1 of the most widely used type hexagon nuts, C-level nut for rough surface, on to less precision machinery, equipment or structures; A and B grade nuts for relatively smooth surface of high precision machine , equipment or structure. Type 2 hex nut thickness m thick, used often require frequent disassembly occasions. Hexagon thin nut m thickness thinner, used to be connected to parts of the surface of the space-constrained applications. Anodic oxidation and chemical into black oxide black, anodized black to be powered, the ultimate goal is to generate the metal surface oxide film is a dense black, to beautify the appearance, improve corrosion effect.
Hex nuts are six sided general purpose fasteners with internal screw threads.
The most common hexagonal fastener with internal threads that screws on to the shank of a bolt or a hex cap screw.
heavy hex nut
1.Standard:ISO,DIN,ANSI,JIS,BS.
2.Grade: 10.9
3.Mark:According to customer's requirement
4.Size: M5
5.Finish:Black Oxide
6.Material:carbon steel.
7.Delivery time:Normally in 20-40 days.
8.Quality:Top high quality.
9.Package:Cartons&pallets or according to customer's requirement.
2.Specification
Nuts Size | Pitch | m | s | Approx. weight kg/1000 |
M5 | 0.8 | 3.4-4.6 | 7.64-8 | 11.1 |
M6 | 1 | 4.4-5.6 | 9.64-10 | 2.32 |
M8 | 1.25 | 5.75-7.25 | 12.57-13 | 4.62 |
M10 | 1.5 | 7.25-8.75 | 16.57-17 | 10.9 |
M12 | 1.75 | 9.25-10.75 | 18.48-19 | 15.9 |
M16 | 2 | 12.1-13.9 | 23.16-24 | 30.8 |
M20 | 2.5 | 15.1-16.9 | 29.16-30 | 60.3 |
M22 | 2.5 | 17.1-18.9 | 31-32 | 80.2 |
M24 | 3 | 17.95-20.05 | 35-36 | 103 |
3.Application
In normal use, a nut-and-bolt joint holds together because the bolt is under a constant tensile stress called the preload. The preload pulls the nut threads against the bolt threads, and the nut face against the bearing surface, with a constant force, so that the nut cannot rotate without overcoming the friction between these surfaces. If the joint is subjected to vibration, however, the preload increases and decreases with each cycle of movement. If the minimum preload during the vibration cycle is not enough to hold the nut firmly in contact with the bolt and the bearing surface, then the nut is likely to become loose.
4.Advantages
1).Superior quality control
We conduct strict quality control from producing to deliver. Our company has strong technical support and advanced level of technology, techniques and equipments. We have cultivated a group of managers who are familiar with product quality, modern concept of management.
2).Attractive price
3).OEM accepted
4).Your design and Logo are welcome.
5).At Your Service at 24 hours
5.More pictures
