|Place of Origin:||China|
|Model Number:||F5201, F5202, F5203, F5204, F5205|
|Minimum Order Quantity:||800kgs|
|Packaging Details:||Common export packing. Cartons+Pallets, or customized packing|
|Delivery Time:||9-25 days|
|Payment Terms:||L/C, T/T, Paypal, Western Union|
|Supply Ability:||500 tons per month|
|Product:||T bolt||Head Drive:||T Head Hammer Head|
|Grade:||Gr4.8||Hammer Head Screw:||Groove 8 for 40s|
|Technique:||Cold Heading||Material:||Carbon steel|

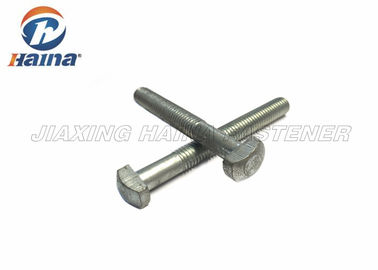

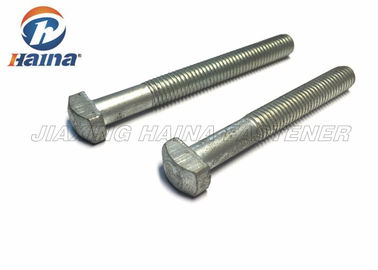

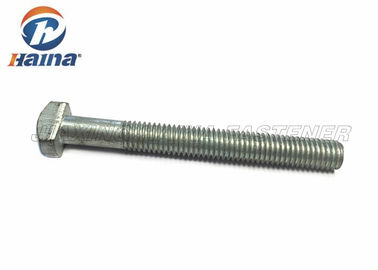

Non Standard Plain Finish Class 4.8 T-Bolt Hammer Head T-Bolt Custom Fasteners for Railway
T Bolts: mechanical parts, threaded fasteners with a cylindrical nut. Consisting of a head and the screw (externally threaded cylinder) for a class of two-part fastener is required and the nut for fastening two parts with hole. This connection type called bolt connection. As to unscrew the nuts from the bolts, but also so that the two parts separate, it bolted belongs detachable connection.Customized T Bolts Custom Fasteners is special bolt. The head is in T type. It is different with hex head bolt in shape. But in application, they are almost same. It also has different sizes and stabdards. We can produce as customer's drawing.
Bolt is a mechanical parts, which is a threaded fasteners with a cylindrical nut. Consisting of a head and the screw (externally threaded cylinder) for a class of two-part fastener is required and the nut for fastening two parts with hole. This connection type called bolt connection. As to unscrew the nuts from the bolts, but also so that the two parts separate, it bolted belongs detachable connection. We can provide customs fasteners according to drawing and samples.
T bolts are used on track line and rail way. As a holistic engineering structures, track laying play a guiding role on train. The fasteners directly bear the enormous pressure of the load. Trains run in the power of its individual components must have sufficient strength and stability to ensure that the train in accordance with a predetermined maximum speed, safe, stable and uninterrupted operation.
We can manufacture various high quality fasteners which meet the GB, DIN, ANSI, JIS and ISO standard. Also we support customized and can also manufacture non-standard fasteners according to drawing.
|Product name||Plain Finish Class 8.8 T-Bolt Hammer Head T-Bolt Custom Fasteners for Railway|
|Materials Available||1. Carbon Steel: gr 4.8 G8.8 G10.9|
|2. Steel:C45(K1045), C46(K1046),C20|
|3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)|
|4. Bronze: C51000, C52100, C54400, etc|
|5. Iron: 1213, 12L14,1215|
|6. Aluminum: Al6061, Al6063|
|7.OEM according to your request|
|Test Equipments:||Cutting machine, automatic pre- milling machine, polishing machin, hard-testing gauge(Vickers), metallography microscope, electrolytic thickness gauge, tensile testing machine, salt spray device, magnetic detection machine(magnetic particle flaw detector), Caliper, Go&No-go gauge and etc.|
|Supply Ability:||2000 tons per month|
|Payment||T/T, L/C , Western Union , paypal|
|Market:||South&north Amrica/Europe/East&South east Asia/ Australia and Africa etc.|
|Our advantage:||One-stop service;
On time delivery;
Material and Test Reports.
|Notice:||Please give us the Size, quantity, Material or Grade, surface, If it is special and Non-standard products, please supply the Drawing or Picturesor Samples to us|
In addition, to meet the needs of the lock after installation, there is a hole in the head, the stem portion with holes, these holes can not screw loose when subject to vibration.
Some did not bolt threaded rod to be meticulous, called the waist bolts. This bolt is conducive to change by force coupling.
There are special high-strength bolts, the head will be bigger and more, there are changes in the size of the steel structure.
Another special use of: T-shaped slot bolt, with most of the machine tool fixture, special shape, side of the head to be cut off. Anchor bolts for machinery and ground fixed connection, there are a variety of shapes. U-bolts, as described above. and many more.
There are special stud welding, a threaded one did not, you can weld the parts, tighten the nut on the other side directly.
The T bolt is consist of a head and the screw (externally threaded cylinder) for a class of two-part fastener is required and the nut for fastening two parts with hole.
The attachment of component at the adjustable groove assembly spot on the profile bar. After attaching to the profile, the screw ensures an optimum high-strength connection.
1. Used for profile 30 series, Groove 8, Thread: M6, L=12/16/20/25mm
2. Used for profile 40 series, Groove 8, Thread: M8, L=20/25/30/35/40mm
3. Uesd for profile 45 series, Groove 10, Thread: M8, L=20/25/30/35/40mm
The T head bolts are be used in connecting.
1. Manufacturing Capability
2. Global Market
3. Custom Fasteners
5. Quick Delivery
6. One stop service
7. Anti-rust and erosion-resistance.
