Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
Waktu pengiriman: | 25days | Quality Control: | Full inspection |
---|---|---|---|
Material: | Carbon Steel | Application: | customized |
Surface Treatment: | Heat Treatment/Blacking | Certificate: | ISO SGS ROHS |
after sales service: | ensure qulity,any quality problems | service: | OEM/ODM, mould-designing |
Payment: | T/T:30% Deposit | size: | M10 |
Cahaya Tinggi: | Industrial Fasteners,U Clip Fasteners |
10.9 Grade Custom Fasteners Hot Dip Galvanized HDG M10 M12 Eyelet Swing Bolt DIN444
1. Product Description
Swing Bolt also known as eye bolt,dog bolt,drop bolt,follow GB / T798-88 standard in China,also known as fish eye bolt overseas, follow DIN444 standards.
Swing bolts are manufactured from high tensile steel, 303 stainless steel or 316 stainless steel. These threaded eye bolts have either a metric or imperial (inch) eye at the top of the bolt, this can be used on heavy duty applications such as large access panels and gates.
These eye bolts are made of heavy duty galvanized steel for strength and durability. This eyebolt does not have a shoulder so it is meant for straight line pulls only. Never load at an angle greater than 45 degrees Swing bolt , also known as domestic, to follow GB / T798-88 standard; also known as fish eye bolt overseas, follow DIN444 standards. Refined holes for the bolts, spherical smooth, high precision thread, thread size is M6 to M64. Articulated bolt surface treatment: hot-dip galvanizing, diffusion coating, white coating, plating color, and other anti-corrosion measures, high strength bolts factory color is blue brunette cook, materials are: Q235,45 #, 40Cr, 35CrMoA, stainless steel 304 316 stainless steel and the like. Application Project: filter self, gas detection equipment, dust masks, raincoats mine, mine detonators, application details: eyelets are widely used: low pressure valves, pressure pipelines, fluid engineering, oil drilling equipment, oil field equipment, such as is often the valve industry, folding bicycle, baby carriage or tool used on occasion open connections, easy to use and articulated bolt, fast, and supporting the use of nut acts connections are tight, the scope of application wide very wide. For valve articulated bolt, sealing problems can not be ignored, because the valve run, drain, drops and other phenomena from here, the valve must be articulated bolt for quality assurance, in order to ensure the safety of use.
2. Specification
Name |
10.9 Grade Carbon Steel Hot Dip Galvanized HDG M10 M 12 Eyelet Swing Bolt DIN444
|
Material | Carbon steel |
Standard | DIN, ISO, |
Size | M3-M52 |
Grade | ,8.8,10.912,9 |
Finish | Plain,Black, Zinc Plated, Galvanized, HDG, Nickel Plated, Chrome Plated |
Delivery time | Usually within 5-15days after we have confirmed your order |
MOQ | 3000 pieces or as your requirement |
Packing | Bulk packing or small boxes packing in carton then on pallets or as your requirement. |
Productivity | 600 tons per years |
Manufacture Process |
Heading → washer → assembly → Threading → Secondary machine → heat treatment → plating → Anti-slipping → Baking → QA Package → Shipping |
||||||||
Package |
1.Plastic Bags+Carton+ Pallet(Carton size: 20cm*20cm*15cm) . 2.according to customers requirements. 3.Suitable for sea shipping and air shipping. |
||||||||
Terms of payment | 30% deposit to confirm the order, left payment balance before shipping | ||||||||
Quality Warranty | Before shipping,the QC will test, and we confirm our goods will satisfy yr request of 100%, and have 18 month warranty | ||||||||
After sales service |
we will follow up goods for every customer
|
3. Application
Application project: filter type self-help device, and gas detection instrument, and dust masks, and mine with raincoat, and mine sent burst device, and application details: live section bolt widely application Yu: low temperature high pressure valve, and pressure pipeline, and fluid engineering, and oil drill mining equipment, and oilfield equipment, field, often in apart connection of occasions or tool Shang like valve industry, folding type bike, and stroller Shang using, due to live section bolt of using convenient, and shortcut, and supporting nut using up connection tight solid of role, application range wide is wide.
4. Advantages
Help customer to design, making drawing;
Providing free samples + material test report;
Arrange shipment, and Inform customer in advance 7 days before finishing the order;
Before shipment, send the detailed product pictures, dimension inspection report, material report to customer;
Expressing original document;
Contact us for more information;

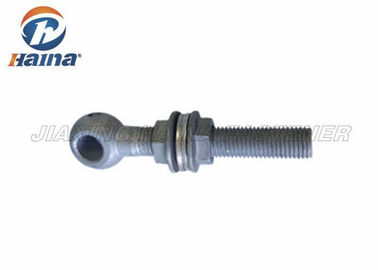

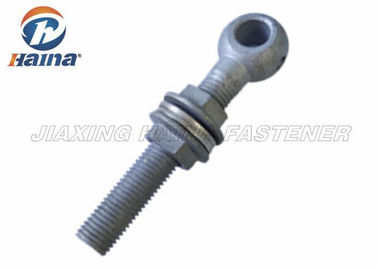

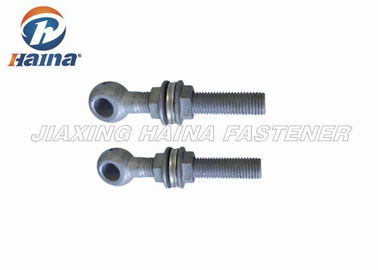

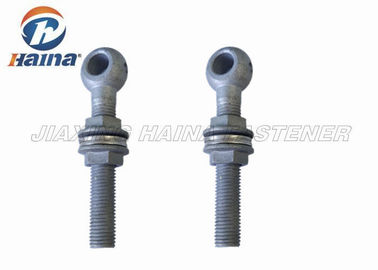

5. More pictures
